如何查看 Tekton 的流水线指标

 ·  ☕ 3 分钟

1. 抓取 Tekton Metrics

  • 新增 ConfigMap 配置文件
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: ConfigMap
metadata:
  name: config-observability
  namespace: tekton-pipelines
  labels:
    app.kubernetes.io/instance: default
    app.kubernetes.io/part-of: tekton-pipelines
data:
    metrics.backend-destination: prometheus
    metrics.taskrun.level: "task"
    metrics.taskrun.duration-type: "histogram"
    metrics.pipelinerun.level: "pipeline"
    metrics.pipelinerun.duration-type: "histogram"
EOF

修改 data 中的配置，会改变上报指标的粒度，甚至会严重影响 Prometheus 的性能，需要谨慎修改。

  • 重启 Tekton
1

kubectl -n tekton-pipelines rollout restart deployment tekton-pipelines-controller
  • [可选] 将 tekton-pipelines-controller 设置为 NodePort 查看 Metrics
1

kubectl -n tekton-pipelines patch svc tekton-pipelines-controller -p '{"spec": {"type": "NodePort"}}'

此时通过 kubectl -n tekton-pipelines get svc tekton-pipelines-controller 可以使用主机 IP:NodePort 的方式进行访问，查看相关指标。如果采用的是集群外的 Prometheus 进行抓取指标，那么可以直接使用 IP:NodePort。

  • 在集群内部，通过 Helm 部署一个 Prometheus 实例

参考 Prometheus、Grafana 搭建 Kubernetes 监控

1
2
3
4

helm -n monitor list

NAME      	NAMESPACE	REVISION	UPDATED                             	STATUS  	CHART            	APP VERSION
prometheus	monitor  	1       	2022-03-17 14:39:38.743741 +0800 CST	deployed	prometheus-15.3.0	2.31.1
  • 设置 Service 让 Prometheus 自动抓取
1

kubectl -n tekton-pipelines edit svc tekton-pipelines-controller

1
2
3
4
5

apiVersion: v1
kind: Service
metadata:
  annotations:
    prometheus.io/scrape: "true"

prometheus.io/path: /metrics 和 prometheus.io/port: "9090" 是默认值，在注解中可以省略。

  • 在 Prometheus 中查看指标

tekton_pipelines_controller_client_latency_bucket{app=“tekton-pipelines-controller”, app_kubernetes_io_component=“controller”, app_kubernetes_io_instance=“default”, app_kubernetes_io_name=“controller”, app_kubernetes_io_part_of=“tekton-pipelines”, app_kubernetes_io_version=“v0.24.1”, instance=“x.x.x.x:9090”, job=“kubernetes-service-endpoints”, le="+Inf", namespace=“tekton-pipelines”, node=“node4”, pipeline_tekton_dev_release=“v0.24.1”, service=“tekton-pipelines-controller”, version=“v0.24.1”}

上面是一个简单示例，在指标中，有关于命名空间、流水线相关的标签，可以用于过滤。

2. Tekton 暴露了哪些指标

2.1 tekton_pipelines_controller_pipelinerun_duration_seconds_[bucket, sum, count]

tekton_pipelines_controller_pipelinerun_duration_seconds_bucket{app=“tekton-pipelines-controller”, app_kubernetes_io_component=“controller”, app_kubernetes_io_instance=“default”, app_kubernetes_io_name=“controller”, app_kubernetes_io_part_of=“tekton-pipelines”, app_kubernetes_io_version=“v0.24.1”, instance=“x.x.x.x:9090”, job=“kubernetes-service-endpoints”, kubernetes_name=“tekton-pipelines-controller”, kubernetes_namespace=“tekton-pipelines”, kubernetes_node=“node2”, le="+Inf", namespace=“asimov”, pipeline=“p-c8tetchin6qsrnm7bqog”, pipeline_tekton_dev_release=“v0.24.1”, pipelinerun=“p-caa3ljeb23td2d6v8t7g”, status=“success”, version=“v0.24.1”} 13

tekton_pipelines_controller_pipelinerun_duration_seconds_sum{app=“tekton-pipelines-controller”, app_kubernetes_io_component=“controller”, app_kubernetes_io_instance=“default”, app_kubernetes_io_name=“controller”, app_kubernetes_io_part_of=“tekton-pipelines”, app_kubernetes_io_version=“v0.24.1”, instance=“x.x.x.x:9090”, job=“kubernetes-service-endpoints”, kubernetes_name=“tekton-pipelines-controller”, kubernetes_namespace=“tekton-pipelines”, kubernetes_node=“node2”, namespace=“asimov”, pipeline=“p-c8tetchin6qsrnm7bqog”, pipeline_tekton_dev_release=“v0.24.1”, pipelinerun=“p-caa3ljeb23td2d6v8t7g”, status=“success”, version=“v0.24.1”} 494

tekton_pipelines_controller_pipelinerun_duration_seconds_count{app=“tekton-pipelines-controller”, app_kubernetes_io_component=“controller”, app_kubernetes_io_instance=“default”, app_kubernetes_io_name=“controller”, app_kubernetes_io_part_of=“tekton-pipelines”, app_kubernetes_io_version=“v0.24.1”, instance=“x.x.x.x:9090”, job=“kubernetes-service-endpoints”, kubernetes_name=“tekton-pipelines-controller”, kubernetes_namespace=“tekton-pipelines”, kubernetes_node=“node2”, namespace=“asimov”, pipeline=“p-c8tetchin6qsrnm7bqog”, pipeline_tekton_dev_release=“v0.24.1”, pipelinerun=“p-caa3ljeb23td2d6v8t7g”, status=“success”, version=“v0.24.1”} 13

这是一个 Histogram 类型的指标，我们可以通过 (histogram_quantile(1, tekton_pipelines_controller_pipelinerun_duration_seconds_bucket)) 获取 pipelinerun 执行的大概时间，或者通过 count by (namespace, pipeline) (tekton_pipelines_controller_pipelinerun_duration_seconds_sum) 获取 pipeline 执行了多少次。

当然，还可以使用 histogram_quantile 统计指定百分比的流水线执行完成，需要多长时间。

2.2 tekton_pipelines_controller_pipelinerun_taskrun_duration_seconds_[bucket, sum, count]

tekton_pipelines_controller_pipelinerun_taskrun_duration_seconds_bucket{app=“tekton-pipelines-controller”, app_kubernetes_io_component=“controller”, app_kubernetes_io_instance=“default”, app_kubernetes_io_name=“controller”, app_kubernetes_io_part_of=“tekton-pipelines”, app_kubernetes_io_version=“v0.24.1”, instance=“x.x.x.x:9090”, job=“kubernetes-service-endpoints”, kubernetes_name=“tekton-pipelines-controller”, kubernetes_namespace=“tekton-pipelines”, kubernetes_node=“node2”, le="+Inf", namespace=“account”, pipeline=“pay-c9tn0h6b23t28qjnp5mg”, pipeline_tekton_dev_release=“v0.24.1”, pipelinerun=“pay-c9tno3mb23t28qjnp660”, status=“failed”, task=“approve”, taskrun=“pay-c9tno3mb23t28qjnp660-approve-huawei-pzwzg”, version=“v0.24.1”} 1

tekton_pipelines_controller_pipelinerun_taskrun_duration_seconds_sum{app=“tekton-pipelines-controller”, app_kubernetes_io_component=“controller”, app_kubernetes_io_instance=“default”, app_kubernetes_io_name=“controller”, app_kubernetes_io_part_of=“tekton-pipelines”, app_kubernetes_io_version=“v0.24.1”, instance=“x.x.x.x:9090”, job=“kubernetes-service-endpoints”, kubernetes_name=“tekton-pipelines-controller”, kubernetes_namespace=“tekton-pipelines”, kubernetes_node=“node2”, namespace=“account”, pipeline=“pay-c9tn0h6b23t28qjnp5mg”, pipeline_tekton_dev_release=“v0.24.1”, pipelinerun=“pay-c9tno3mb23t28qjnp660”, status=“failed”, task=“approve”, taskrun=“pay-c9tno3mb23t28qjnp660-approve-huawei-pzwzg”, version=“v0.24.1”} 1461438

tekton_pipelines_controller_pipelinerun_taskrun_duration_seconds_count{app=“tekton-pipelines-controller”, app_kubernetes_io_component=“controller”, app_kubernetes_io_instance=“default”, app_kubernetes_io_name=“controller”, app_kubernetes_io_part_of=“tekton-pipelines”, app_kubernetes_io_version=“v0.24.1”, instance=“x.x.x.x:9090”, job=“kubernetes-service-endpoints”, kubernetes_name=“tekton-pipelines-controller”, kubernetes_namespace=“tekton-pipelines”, kubernetes_node=“node2”, namespace=“account”, pipeline=“pay-c9tn0h6b23t28qjnp5mg”, pipeline_tekton_dev_release=“v0.24.1”, pipelinerun=“pay-c9tno3mb23t28qjnp660”, status=“failed”, task=“approve”, taskrun=“pay-c9tno3mb23t28qjnp660-approve-huawei-pzwzg”, version=“v0.24.1”} 18

这是一个 Histogram 类型的指标，具体使用可以参考上面的 tekton_pipelines_controller_pipelinerun_duration_seconds_ 指标。

2.3 tekton_pipelines_controller_pipelinerun_count

tekton_pipelines_controller_pipelinerun_count{app=“tekton-pipelines-controller”, app_kubernetes_io_component=“controller”, app_kubernetes_io_instance=“default”, app_kubernetes_io_name=“controller”, app_kubernetes_io_part_of=“tekton-pipelines”, app_kubernetes_io_version=“v0.24.1”, instance=“x.x.x.x:9090”, job=“kubernetes-service-endpoints”, kubernetes_name=“tekton-pipelines-controller”, kubernetes_namespace=“tekton-pipelines”, kubernetes_node=“node2”, pipeline_tekton_dev_release=“v0.24.1”, status=“success”, version=“v0.24.1”} 7540

在整个集群上，流水线总共成功执行了 7540 次

2.4 tekton_pipelines_controller_running_pipelineruns_count

tekton_pipelines_controller_running_pipelineruns_count{app=“tekton-pipelines-controller”, app_kubernetes_io_component=“controller”, app_kubernetes_io_instance=“default”, app_kubernetes_io_name=“controller”, app_kubernetes_io_part_of=“tekton-pipelines”, app_kubernetes_io_version=“v0.24.1”, instance=“x.x.x.x:9090”, job=“kubernetes-service-endpoints”, kubernetes_name=“tekton-pipelines-controller”, kubernetes_namespace=“tekton-pipelines”, kubernetes_node=“node2”, pipeline_tekton_dev_release=“v0.24.1”, version=“v0.24.1”} 1

在整个集群上，正在运行 1 条流水线

2.5 tekton_pipelines_controller_taskrun_duration_seconds_[bucket, sum, count]

如果直接使用 taskrun 而不是 pipelinerun 运行任务，才会有这些指标。

2.6 tekton_pipelines_controller_taskrun_count

tekton_pipelines_controller_taskrun_count{app=“tekton-pipelines-controller”, app_kubernetes_io_component=“controller”, app_kubernetes_io_instance=“default”, app_kubernetes_io_name=“controller”, app_kubernetes_io_part_of=“tekton-pipelines”, app_kubernetes_io_version=“v0.24.1”, instance=“x.x.x.x:9090”, job=“kubernetes-service-endpoints”, kubernetes_name=“tekton-pipelines-controller”, kubernetes_namespace=“tekton-pipelines”, kubernetes_node=“node2”, pipeline_tekton_dev_release=“v0.24.1”, status=“success”, version=“v0.24.1”} 43423

在整个集群上，taskrun 成功执行了 43423 次

2.7 tekton_pipelines_controller_running_taskruns_count

tekton_pipelines_controller_running_taskruns_count{app=“tekton-pipelines-controller”, app_kubernetes_io_component=“controller”, app_kubernetes_io_instance=“default”, app_kubernetes_io_name=“controller”, app_kubernetes_io_part_of=“tekton-pipelines”, app_kubernetes_io_version=“v0.24.1”, instance=“x.x.x.x:9090”, job=“kubernetes-service-endpoints”, kubernetes_name=“tekton-pipelines-controller”, kubernetes_namespace=“tekton-pipelines”, kubernetes_node=“node2”, pipeline_tekton_dev_release=“v0.24.1”, version=“v0.24.1”} 1

在整个集群上，正在运行 1 个 taskrun 任务

2.8 tekton_pipelines_controller_taskruns_pod_latency

tekton_pipelines_controller_taskruns_pod_latency{app=“tekton-pipelines-controller”, app_kubernetes_io_component=“controller”, app_kubernetes_io_instance=“default”, app_kubernetes_io_name=“controller”, app_kubernetes_io_part_of=“tekton-pipelines”, app_kubernetes_io_version=“v0.24.1”, instance=“x.x.x.x:9090”, job=“kubernetes-service-endpoints”, kubernetes_name=“tekton-pipelines-controller”, kubernetes_namespace=“tekton-pipelines”, kubernetes_node=“node2”, namespace=“asimov”, pipeline_tekton_dev_release=“v0.24.1”, pod=“p-caa3ljeb23td2d6v8t7g-fetch-main-repo-fr62k-pod-sh4vp”, task=“git-clone”, taskrun=“p-caa3ljeb23td2d6v8t7g-fetch-main-repo-fr62k”, version=“v0.24.1”} 3000000000

p-caa3ljeb23td2d6v8t7g-fetch-main-repo-fr62k taskrun 任务创建 Pod 的启动延时为 3000000000，这里的延时是秒级别，因此单位应该是纳秒，也就是 3 秒。

  • tekton_pipelines_controller_cloudevent_count

tekton_pipelines_controller_cloudevent_count{app=“tekton-pipelines-controller”, app_kubernetes_io_component=“controller”, app_kubernetes_io_instance=“default”, app_kubernetes_io_name=“controller”, app_kubernetes_io_part_of=“tekton-pipelines”, app_kubernetes_io_version=“v0.24.1”, instance=“x.x.x.x:9090”, job=“kubernetes-service-endpoints”, kubernetes_name=“tekton-pipelines-controller”, kubernetes_namespace=“tekton-pipelines”, kubernetes_node=“node2”, namespace=“account”, pipeline=“pay-c9tn0h6b23t28qjnp5mg”, pipeline_tekton_dev_release=“v0.24.1”, pipelinerun=“pay-c9tno3mb23t28qjnp660”, status=“failed”, task=“approve”, taskrun=“pay-c9tno3mb23t28qjnp660-approve-huawei-pzwzg”, version=“v0.24.1”} 0

Tekton 可以与 CloudEvent 集成，将事件发送到 CloudEvent 进行广播。

2.9 tekton_pipelines_controller_client_latency_[bucket, sum, count]

Tekton 中使用 Client 与 Kubernete Apiserver 交互。

tekton_pipelines_controller_client_latency_bucket{app=“tekton-pipelines-controller”, app_kubernetes_io_component=“controller”, app_kubernetes_io_instance=“default”, app_kubernetes_io_name=“controller”, app_kubernetes_io_part_of=“tekton-pipelines”, app_kubernetes_io_version=“v0.24.1”, instance=“x.x.x.x:9090”, job=“kubernetes-service-endpoints”, kubernetes_name=“tekton-pipelines-controller”, kubernetes_namespace=“tekton-pipelines”, kubernetes_node=“node2”, le=“1”, pipeline_tekton_dev_release=“v0.24.1”, version=“v0.24.1”} 11627

le=“0.1” 10019，在 0.1 秒内，处理了 10019 个请求
le=“1” 11627，在 1 秒内，处理了 11627 个请求
le=“10”，在 10 秒内，处理了 11633 个请求

其他相关的指标还有:

tekton_pipelines_controller_client_latency_sum
tekton_pipelines_controller_client_latency_count

3. Grafana 面板

针对上面的一些描述，我绘制了一个 Tekton Overview 的 Grafana 面板，链接: https://grafana.com/grafana/dashboards/16559-tekton-overview

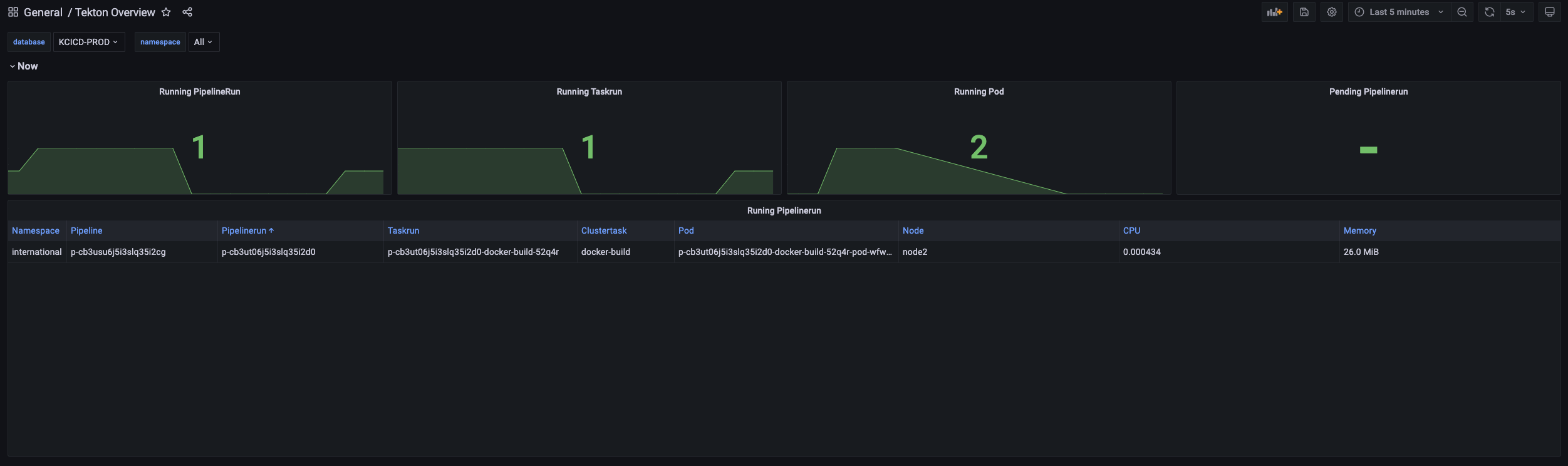

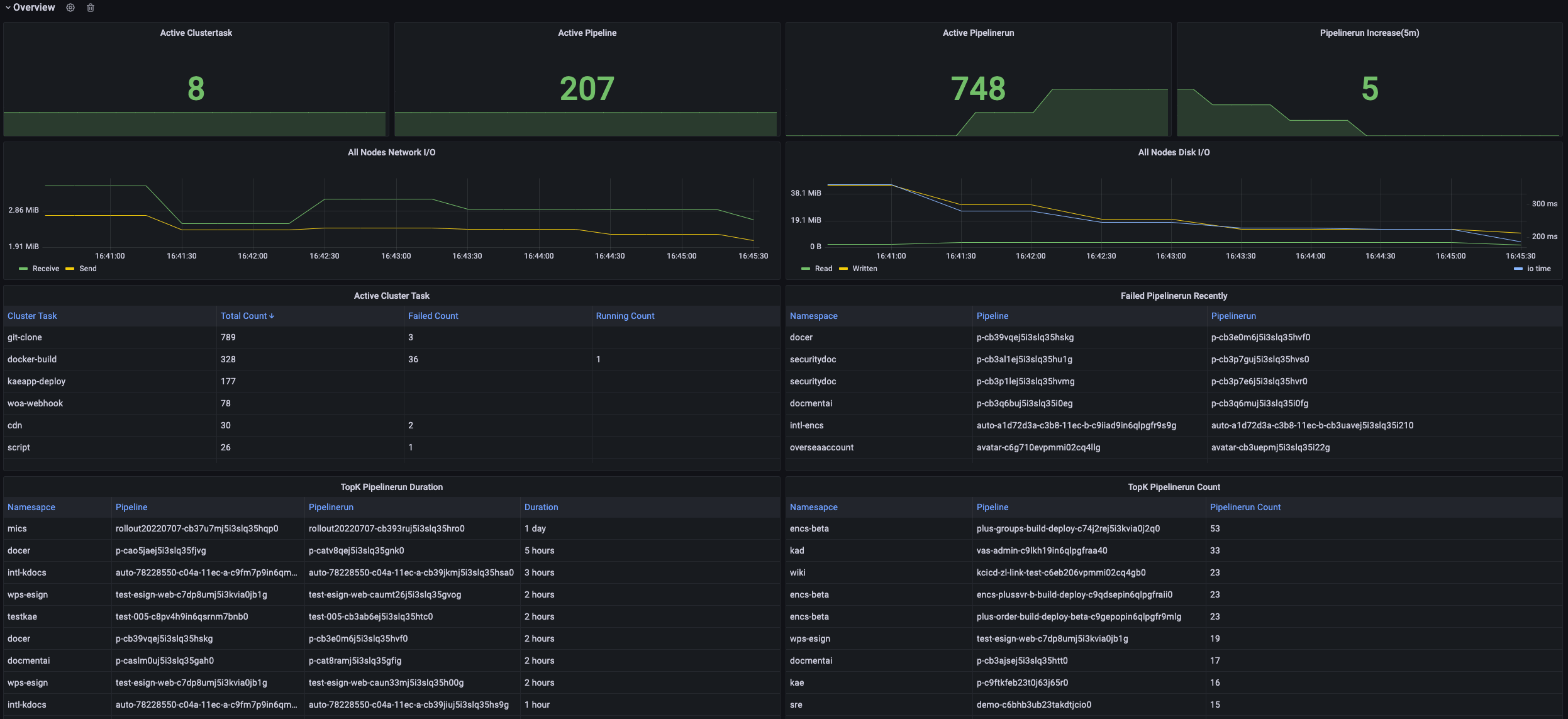

下面是一些面板截图:

如果你也需要使用这个面板，别忘了开启 Label 的采集，参考: 如何采集 Kubernetes 对象的 labels 和 annotations。
